Product Description

Automated robotic blasting machine | Robotic abrasive blasting system

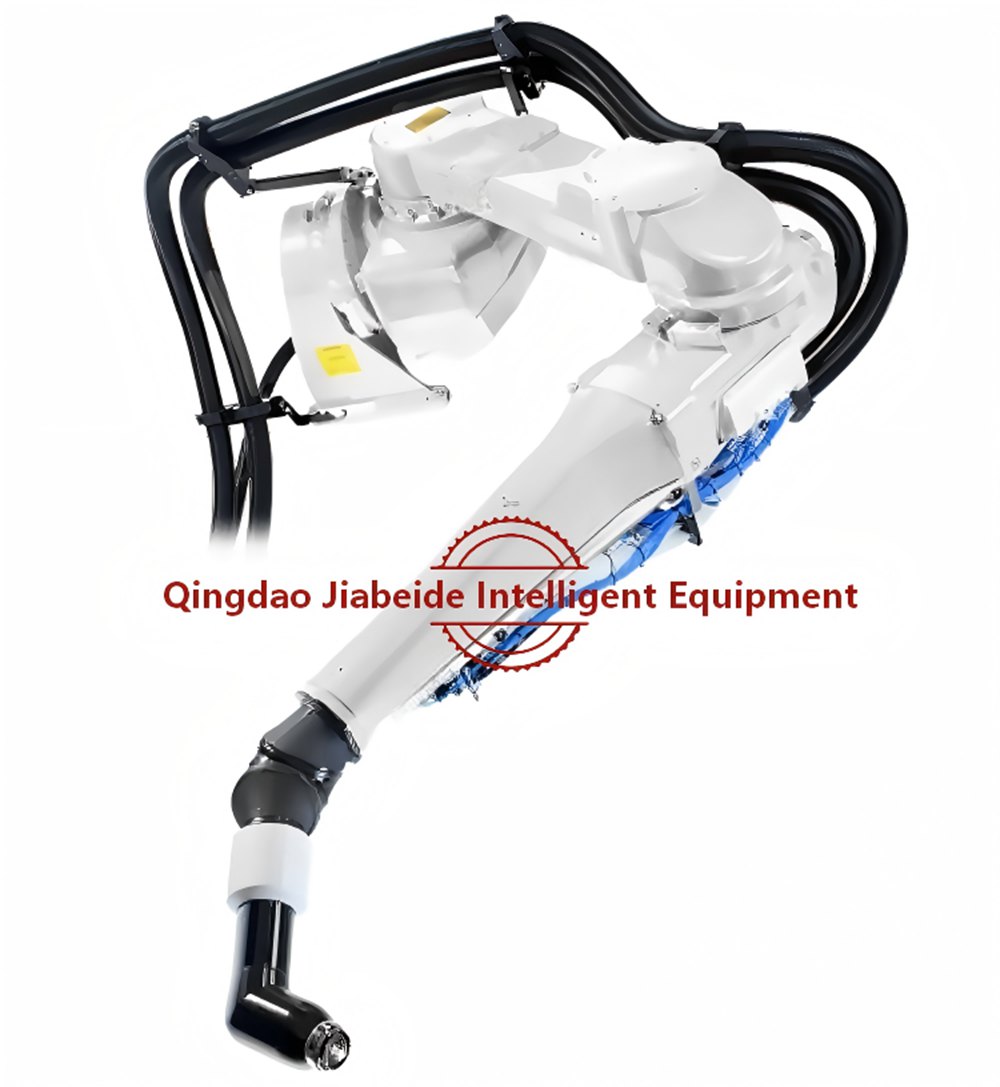

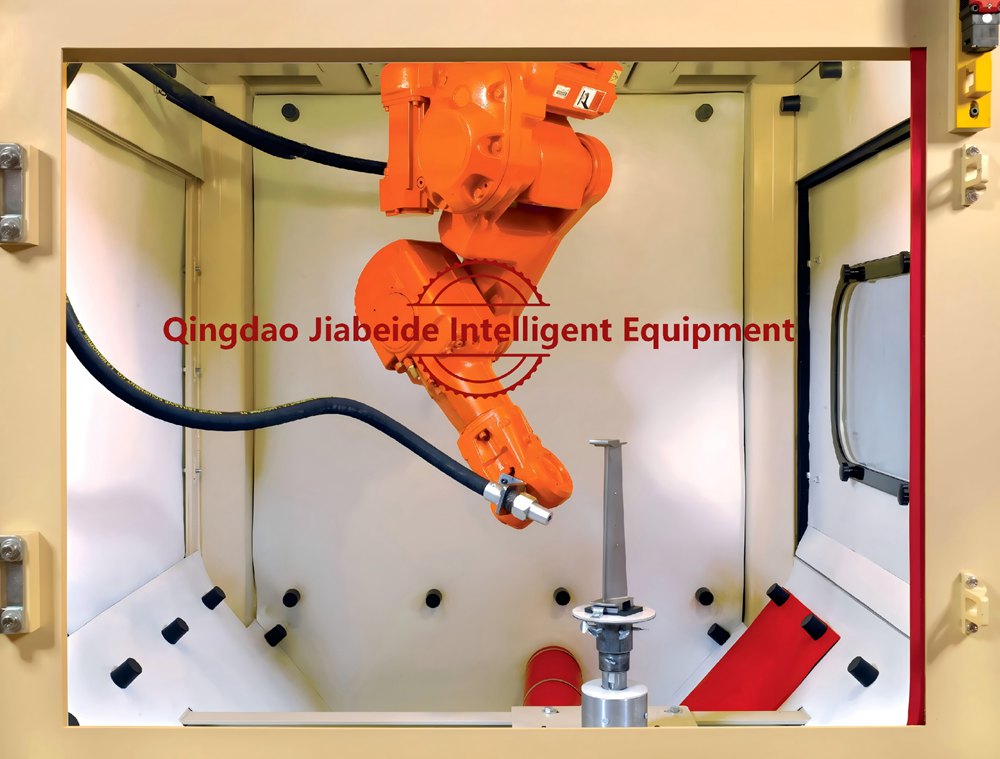

Robotic Shot Blasting System
Robotic abrasive blasting system
Automated robotic blasting machine
Robotic blast cleaning system
Robotic surface blasting
Robotic blaster
Automatic blasting robot

Product description

Robotic blasting systems bring a new level of automation to pipe joint blasting processes. By integrating a closedloop vacuum blasting unit with an intelligent robot, the system delivers a clean working environment and consistent, uniform blasting results. It automatically detects the cutback area and pipe outer diameter, then calculates and generates the optimal path for the blasting head.



Advantages

Precise nozzle alignment, minimizing abrasive spillage
Enhanced safety, significantly reducing manual risks
Consistent and reliable blasting quality

Easy maintenance

Fully autonomous operation; no frequent manual settings or adjustments
Automatic adaptation to varying pipe diameters
Automatic recognition of blasting zones and weld areas
Userfriendly operation; no professional robotics experience required

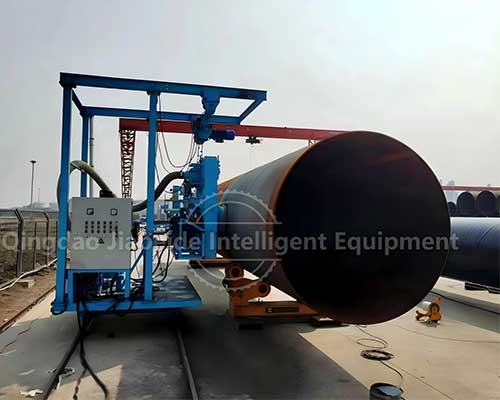

How It Works

Depending on process requirements, one or two robots are positioned alongside the pipe to be treated. Each robot is equipped with a dedicated endofarm tool (EOAT) that integrates displacement sensors and a blasting head connected to a closedloop vacuum blasting and recovery system. Sensors identify the blasting area position and pipe diameter; the robot processes the data and initiates the blasting cycle. In a dualrobot setup, each robot blasts one half of the pipe circumference.

System Scope
Intelligent robot with endofarm tool
Safeguarded working environment
Brush wear compensation unit
Closedloop vacuum blasting system with abrasive recovery
Specifications
Blasting capacity: up to 10 m²/h
Blasting quality: cleanliness SA2½, roughness 50–100 μm
Pipe diameter range: OD 4½” – 24”

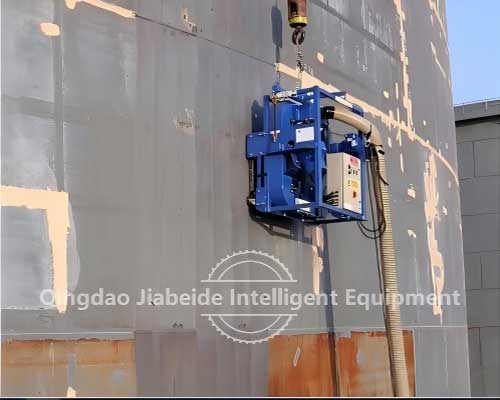

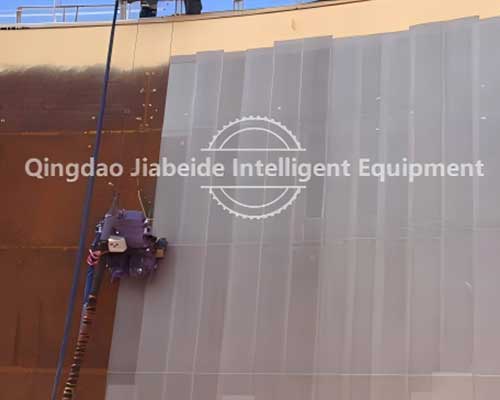

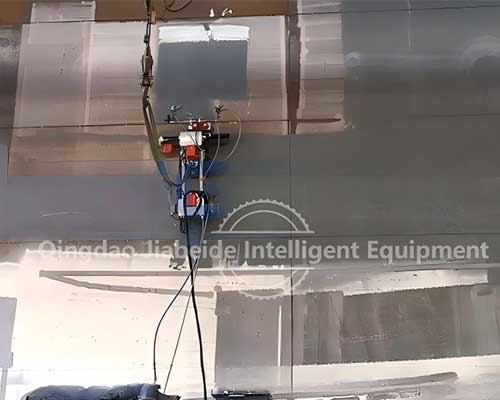

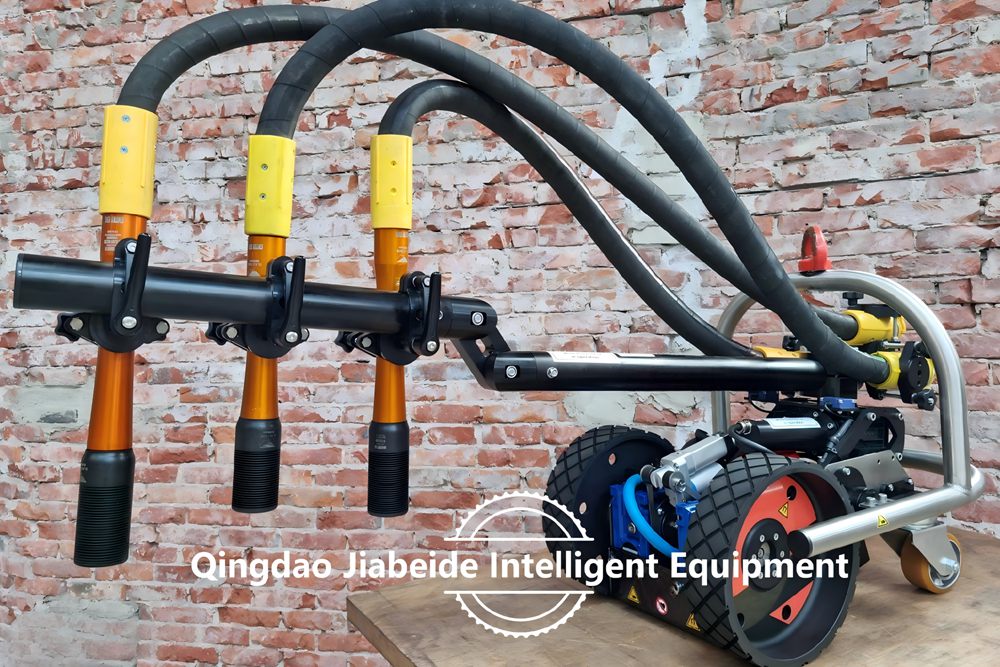

WallClimbing Robot Platform
Climbing robot
Industrial wall crawler robot
Wall climbing blasting robot

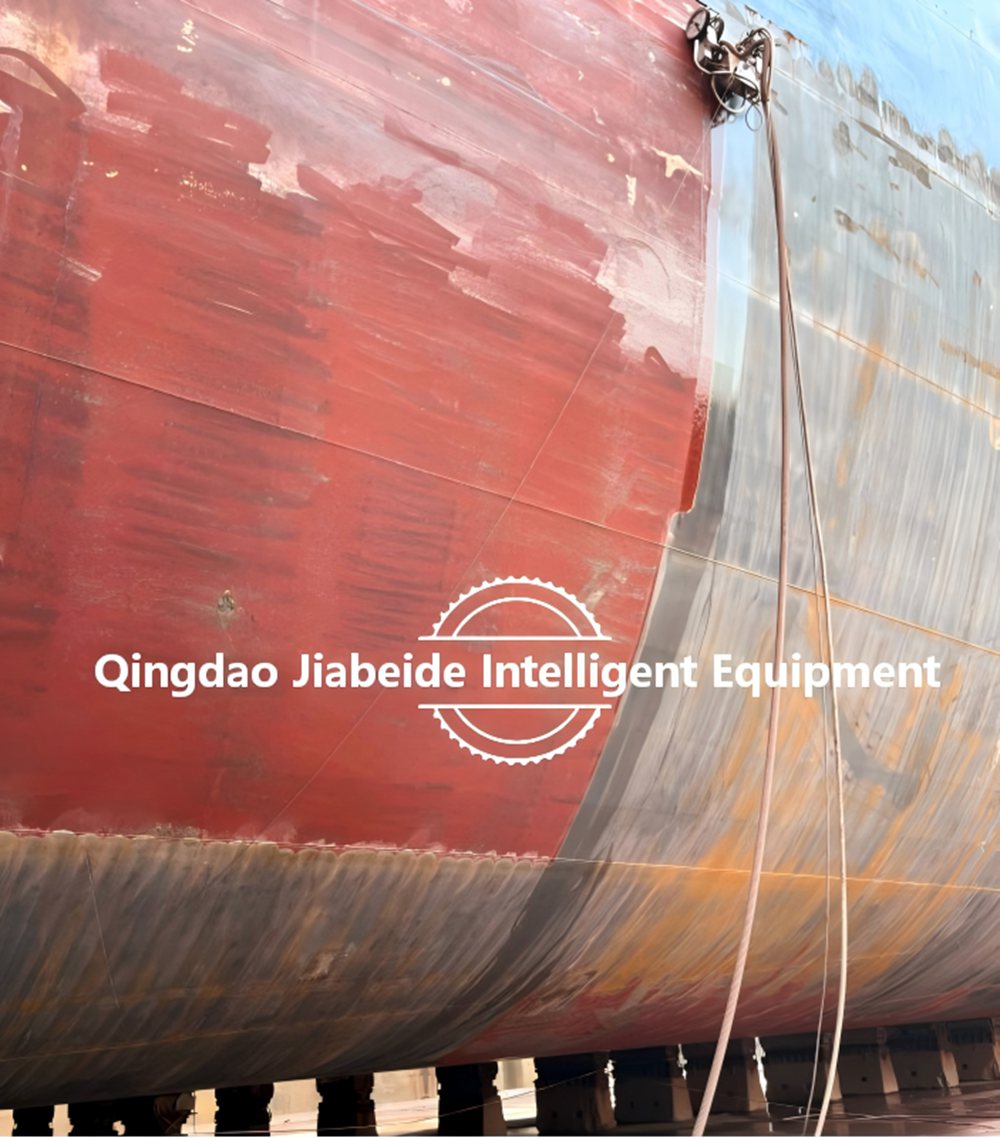

Ship hull wall climbing robot
The wallclimbing robot platform can be equipped with pendulum or linear swing arms, which can carry tools for blasting, grinding, texturing, laser derusting, spraying, and more. The robot moves autonomously on large workpiece surfaces while performing operations. It is widely used in shipbuilding and repair, petrochemical tank construction and maintenance, port machinery manufacturing, large steel bridge coating and anticorrosion, wind turbine tower construction and maintenance, and other fields.

Features & Benefits

A specialpurpose robotic platform integrating mechanics, dynamics, control, sensing, algorithms, and AI technologies.

Lowvoltage drive for the robot body, ensuring safety and reliability.

Compatible with both pendulum and linear swing arms, switchable via program control.

Multitool integration enables one machine for multiple applications.

Industrial touchscreen remote control for intuitive and precise operation.

Adapts to complex curved surfaces with strong obstaclecrossing capability and stable movement.



Basic Parameters
Parameter Description
Main power supply AC220V
Robot working power Lowvoltage DC 48V
Power consumption 2000W
Weight 80 kg
Payload 70 kg
Mounting Highstrength magnetic adsorption, fast installation
Crawling speed 0–10 m/min
Control mode Wireless remote, manual jog, manual continuous, auto cruise
Working posture Horizontal, overhead, vertical, curved surface
Swing width Pendulum ±40°, tool center ±400 mm
Swing control Electric drive, adjustable amplitude, center position and speed
