Any Hook Shot Blasting Machines are available, please feel free to contact us!

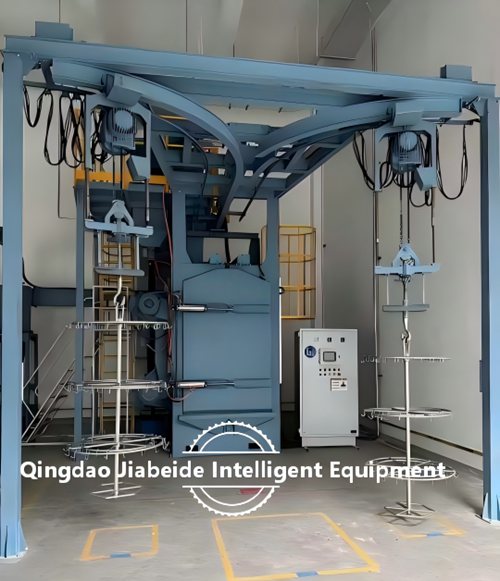

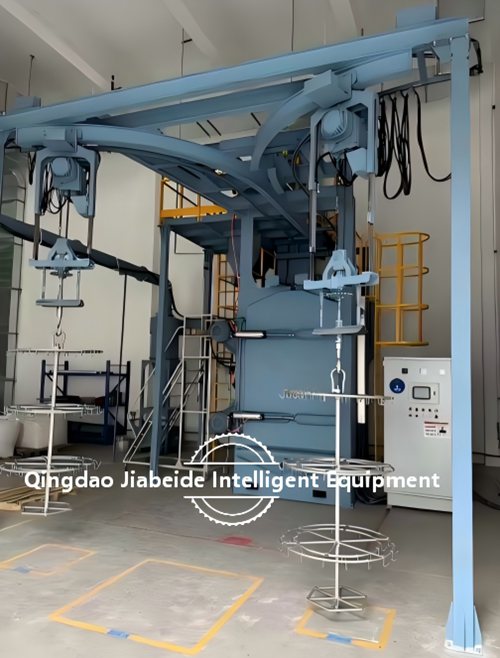

The main difference between the double-hook shot blasting machine and the single-hook shot blasting machine is that the double-hook shot blasting machine has two hooks, which can mount two workpieces at the same time. When one of the hooks is in the shot blasting chamber, the workpiece can be hung on the hook outside the chamber in advance, and then directly sent into the chamber after the shot blasting is completed, which reduces the time for changing workpieces and improves production efficiency.
These Series Hook Type Shot Blasting Machine is designed for cleaning and strengthening small-to-medium castings, forgings, and steel components in foundry, construction, chemical, and automotive industries. It efficiently removes sand, scale, and oxide layers from batch parts and heat-treated workpieces, including thin-walled delicate items.

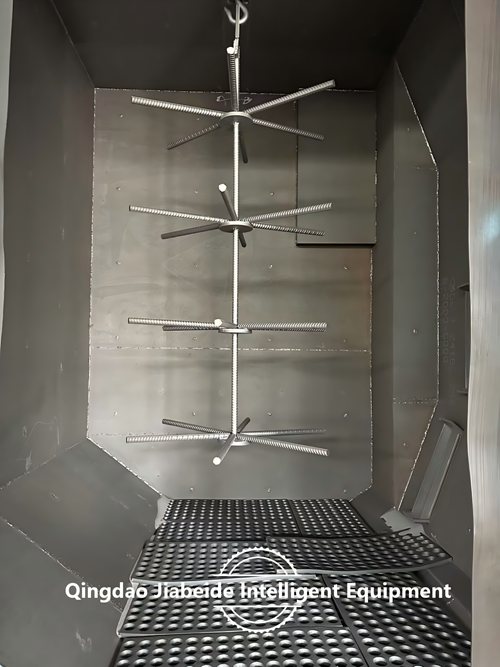

Workpieces are suspended directly on hooks (large parts) or mounted on fixtures (small parts). Hooks travel along T/Y-shaped overhead rails into the blasting chamber, where parts rotate to receive uniform steel shot impact from side-mounted blast wheels. The high-abrasion “hot zone” inside the chamber is protected by Mn13 alloy liners. After 3–5 minutes of blasting, finished parts exit via the rail system.
Model: Q37 Series
Power: 15 kW
Weight: 3,000 kg
Function: Rust removal, descaling, deburring, surface preparation
Cleaning Media: Steel shot
Chamber Liner: Rolled Mn13 steel plate
Dust Collector: Advanced cartridge filter
PLC: Siemens / Omron or top Chinese brands
Blast Wheel: Belt-driven
Warranty: 1 year
Origin: Qingdao, China
Brand: JBD
Certification: CE
Dimension: Customized
Video Inspection & Test Report: Provided
After-sales: Overseas engineer service available
Lead Time
Quantity (sets) 1 >1
Lead time (days) 35–50 To be negotiated
1.High-Efficiency Batch Processing
Compact structure, ideal for mass production of small-to-medium workpieces with fast throughput.
2.Automated Continuous Operation
Set rail speed → hang parts → unload after blasting; seamless batch workflow.
3.Heavy Load Capacity
Single hook supports 10 kg–5,000 kg, ensuring stable and high-output operation.
4.Precision Cleaning for Complex Parts

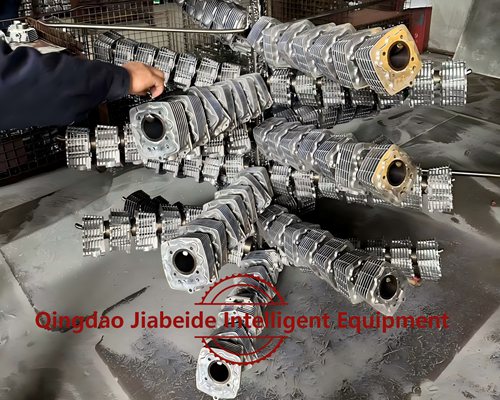

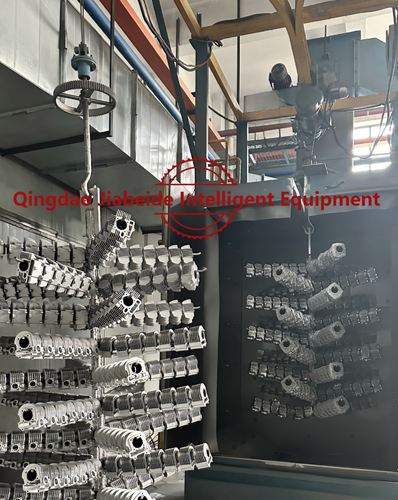

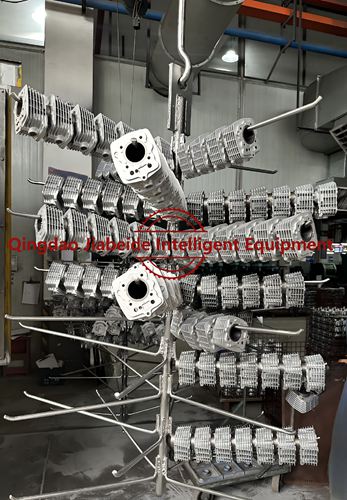

Effective on both inner and outer surfaces of intricate components (e.g., cylinder heads, motor housings).
5.Wide Industry Application
Suitable for automotive, tractor, engine, motor, and valve manufacturing.
6.Flexible Configuration
Available in single/double hook, lifting/non-lifting types; no foundation pit required, space-saving design.
Item Unit Q376 Q376B Q378C Q3710 Q3720 Q3730 Q3750
Max Workpiece Weight kg 500 600 800 1,000 2,000 3,000 5,000
Abrasive Flow kg/min 2×200 2×200 2×250 2×250 3×250 3×250 4×250
Air Volume m³/h 5,000 5,000 5,000 5,000 9,000 11,000 14,000
Elevator Capacity t/h 24 24 30 30 45 45 60
Separator Capacity t/h 24 24 30 30 45 45 60
Max Suspender Size mm 600×1,200 700×1,200 1,000×1,600 1,200×1,800 1,400×2,200 1,600×2,300 1,800×2,500
Note: Technical data subject to final confirmation.
We provide custom non-standard shot blasting machines tailored to:
·Workpiece size, material, and weight (10 kg–5,000+ kg)
·Production capacity and automation level
·Hook type (single/double) and rail layout (T/Y)
·Adjustable blasting time (2–10 minutes)
·Wear-resistant components (Mn alloy liners, etc.)
Contact us with your workpiece details and production goals for a personalized solution.

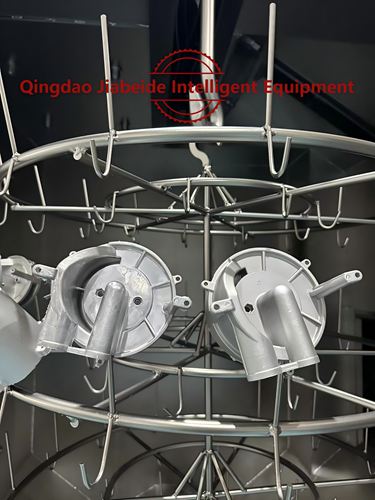

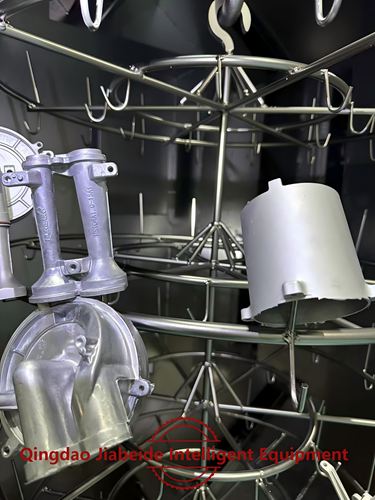

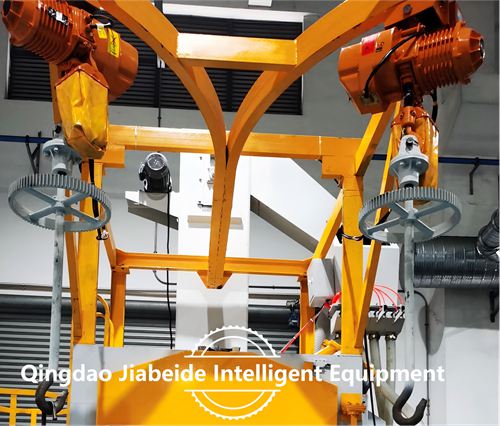

1. Spinner Hanger System
Hanger Hook: Secures workpieces for stable transport
Drive Motor: Powers hook rotation and rail movement
Overhead Rail: T-type (single hook); Y-type (double hook, loading + working)
Blasting Time: 3–5 minutes, adjustable
2. Blasting Chamber
Blast Wheels: Side-mounted, angle-adjustable for full coverage

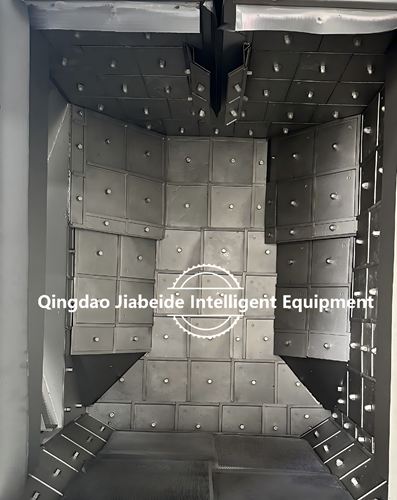

Hot Zone Liner: Mn13 alloy, heavy abrasion resistance

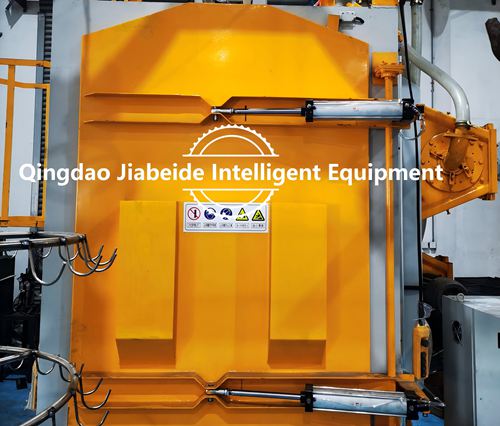

Doors: anual or pneumatic
3. Abrasive Recycling System
Screw Conveyor: Collects spent shot at chamber bottom
Bucket Elevator: Transports shot to separator
Separator: Screen + air classification, recycles qualified steel shot
4. Dust Collection System
Efficiency: 99.9%
Configuration: Cyclone pre-collector + cartridge filter
Features:Pulse cleaning, dust-free operation, eco-friendly

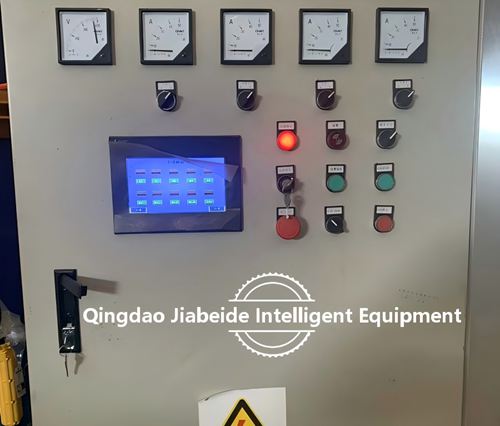

5. Electrical Control System
Operation: Automatic / manual
Controller: PLC (Siemens / Omron / Chinese brands)
Safety: Emergency stop, power indicator
