Custom Sand Blasting Booth Supplier in Qindao China

Features:

Any Custom Sand Blasting Booth are available, please feel free to contact us!

Product Description

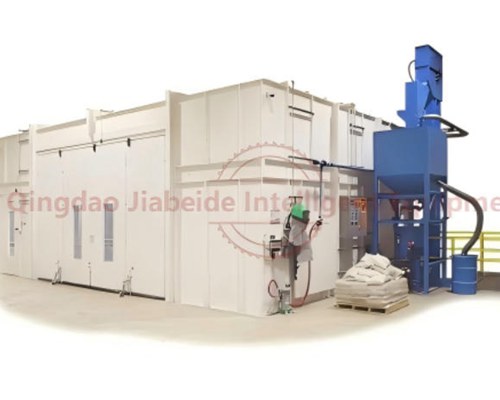

Custom Sand Blasting Booth Supplier in Qindao China

Our fully automatic recycling shot blasting booths are engineered to match production workflows and workpiece characteristics. They are ideal for removing oxidation, rust, and contaminants, as well as for surface strengthening and improving coating adhesion. Widely used for large castings, forgings, welded steel structures, construction machinery, industrial boilers, chemical equipment, and shipbuilding components.
Designed for both heavy-duty industrial applications and specialized material processing, our booths integrate innovative technology with high operational efficiency to meet diverse production requirements.

Key Features

Modular design with durable interlocking steel panels.
High-efficiency underfloor abrasive recovery system.
Customizable dimensions to fit different workshop spaces.

Technical Parameters

Parameter Specification
Max. Workpiece Size (L×W×H) Customizable
Max. Workpiece Weight Customizable
Surface Finish Sa2–Sa2.5 (GB892388)
Processing Capacity 30–60 m³/min (adjustable by number of blasting guns)
Surface Roughness 40–75 μm (varies with abrasive size)
Recommended Abrasive Steel shot, Φ0.5–1.5 mm
Booth Internal Size (L×W×H) Customizable
Power Supply 380V / 3P / 50Hz (or customized)
Foundation Requirement Waterproof pit
Main Components & Advantages

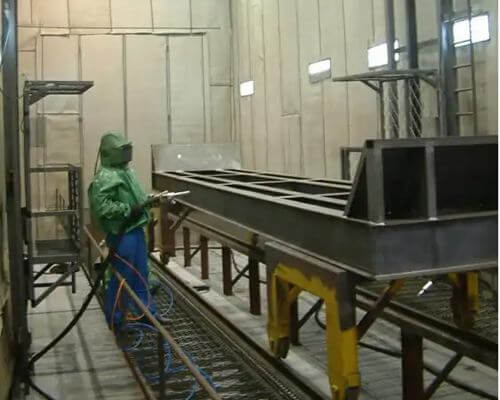

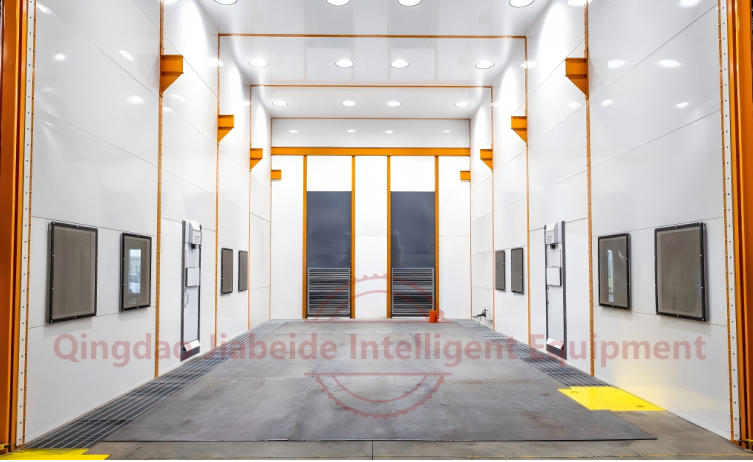

Blasting Chamber
Custombuilt shot blasting booth tailored to specific operational needs, ensuring robust structure and long service life.

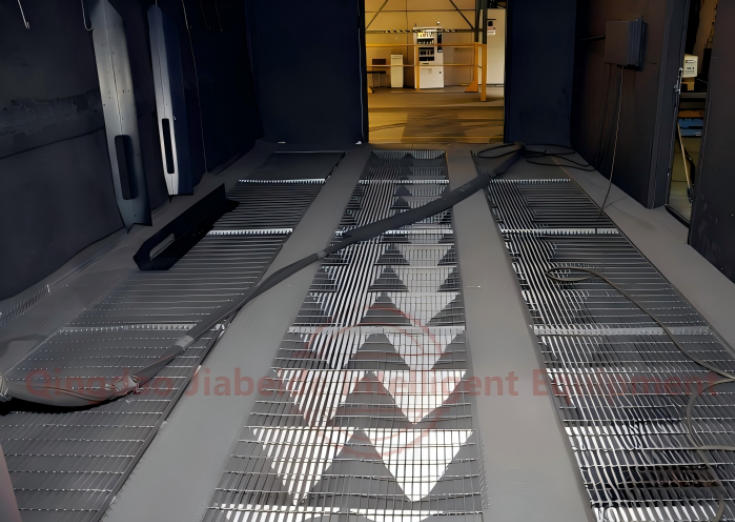

Automatic Abrasive Recovery System

Covers the entire floor area with no dead zones, enabling timely recycling and reuse of abrasives for continuous, efficient operation.

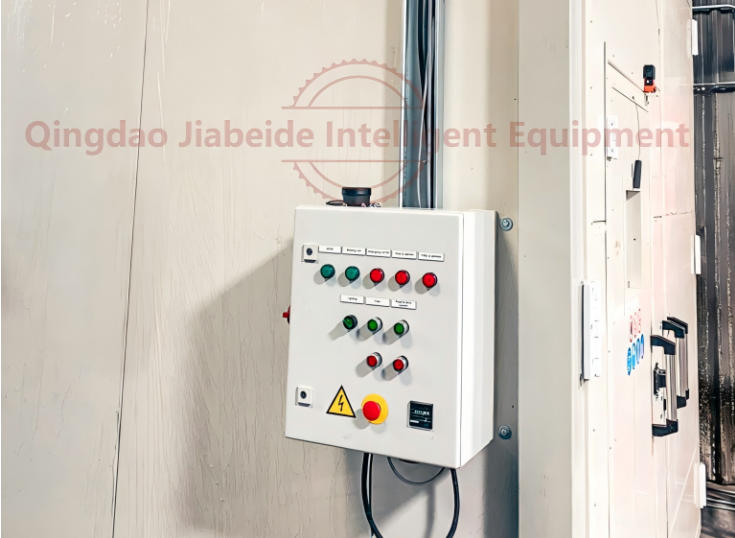

Electric Control System

Equipped with interlock and selflocking safety mechanisms for blasting turbines, maintenance doors, abrasive regulators, and circulation systems. Ensures safe, stable, and foolproof operation.

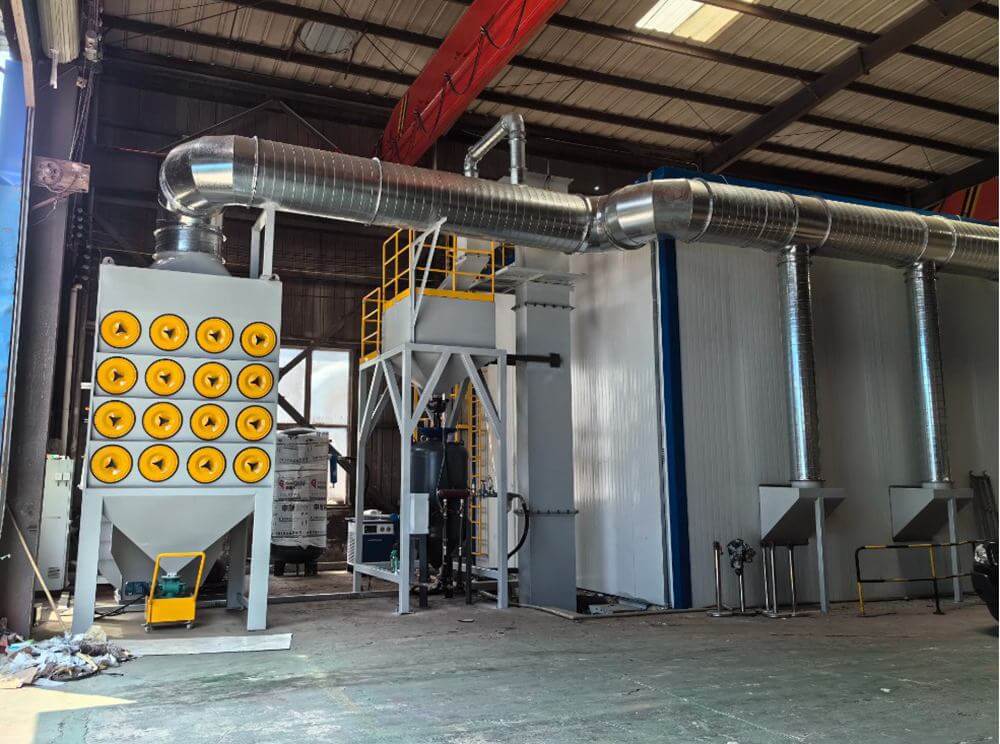

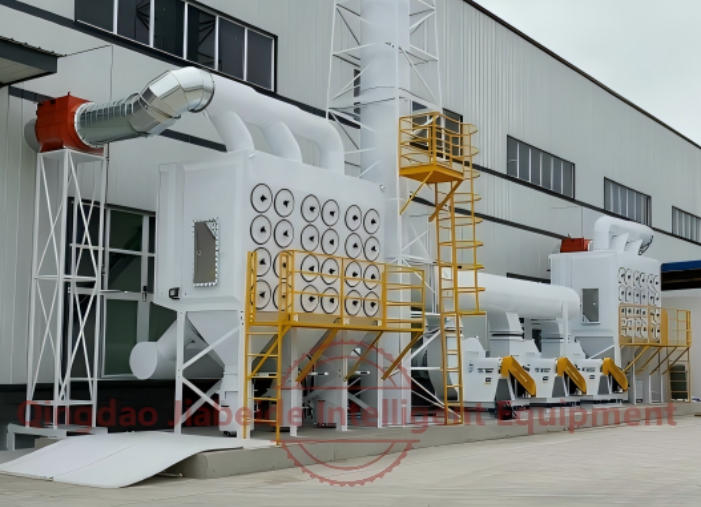

HighEfficiency Dust Removal

Integrated ducting network + cartridge dust collector; emission concentration <80 mg/m³. 30kW fan provides 26,000 m³/h ventilation, maintaining a clean working environment.

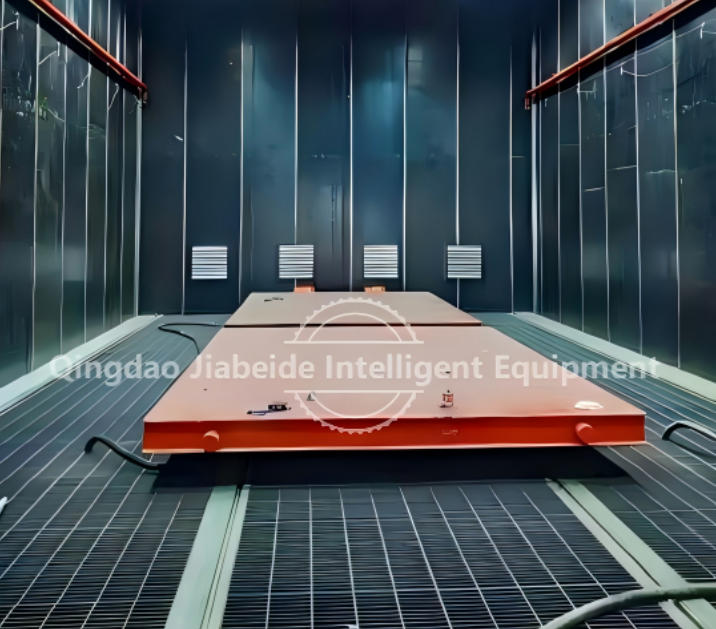

Customizable Trolley System

Polyurethane scrapers installed before each wheel prevent jams by removing scattered abrasives from the track, ensuring smooth, uninterrupted operation.
